* Batteri/ EnergilagringPixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett
Pixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett
Pixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett
Pixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett - 2
Pixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett - 3

Pixii PowerShaper 2, Industrial - upp till 50kWh per batteri-kabinett

822 500 SEK
Läs mer...

I lager: 7

  • Betala säkert med kort
  • Maila oss, vi svarar snabbt!
  • Pga tillfälligt hög belastning ber vi att ni kontaktar oss via mail

Med reservation för tryckfel och slutförsäljning!

  • TillverkarePixii
  • VarumärkePixii

Beskrivning

Art.nr: AMSS-PS50

Tillsammans med stödtjänster så finns det möjlighet till väldigt snabb återbetalning av investeringen. Priset kan ändras beroende på hur installationen kommer se ut, och av den anledningen vill vi gärna räkna på dessa skåp om ni är intresserade, klicka i en prisförfrågan så ser vi förutsättningarna för er.

Detta är en industrianpassad premiumprodukt och passar bra för stora anläggningar. Riktpris är idag 658000kr + moms för en standardinstallation inkl Checkwatts stödtjänst (822500kr inkl moms).

Vi tar hand om allt vad som behövs för installationen; -föranmälan, -installation, -inkoppling, -förkvalificering, -belastningsprov, -slutkontroll.
_____________________________________________________________________________________
______________________________________________________________________________________

Get the power you need without upgrading old grid infrastructure.
With a growing energy demand and rising cost, you need to optimize your energy consumption and get more out of your solar installation with a battery energy storage system that is quick to deploy and easy to scale.

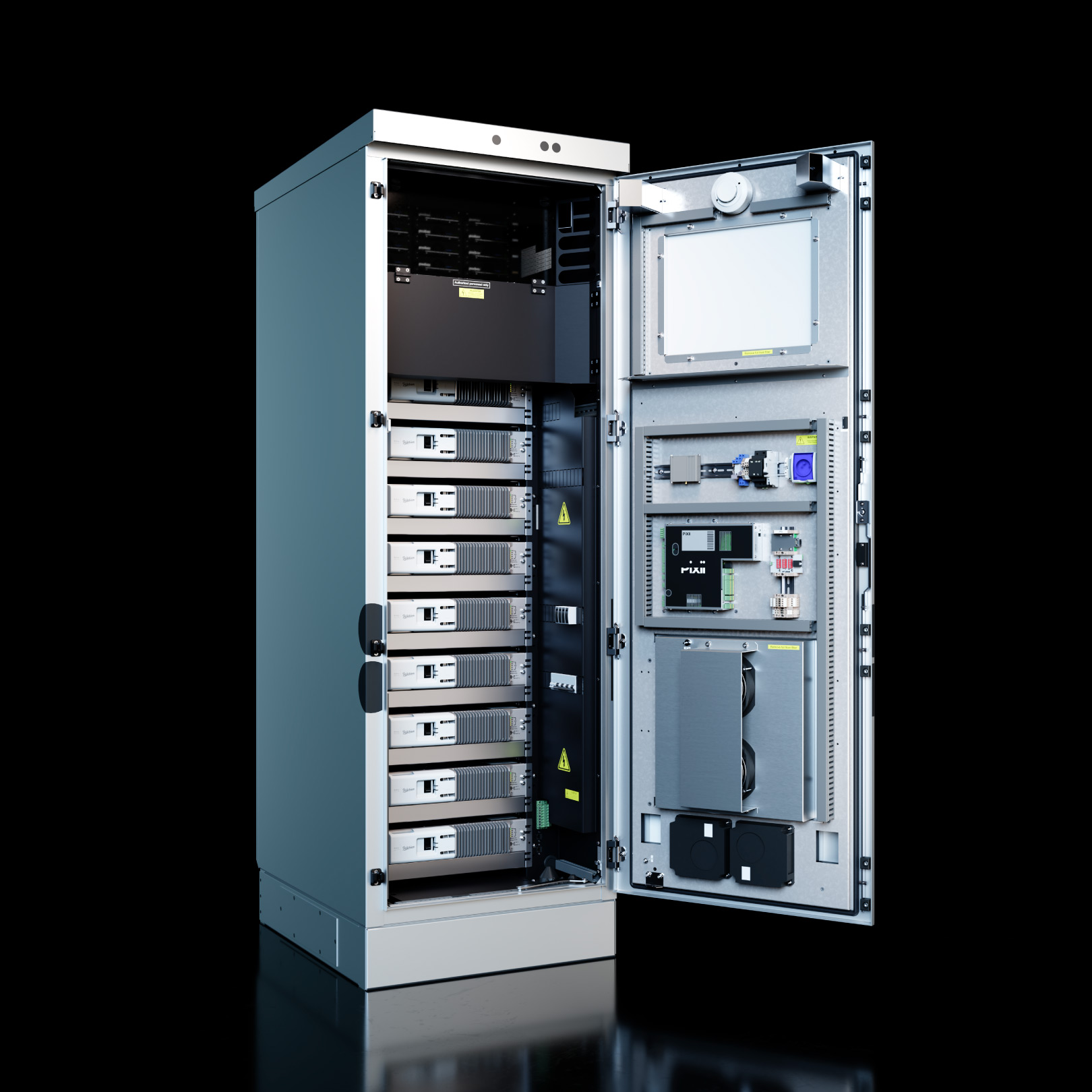

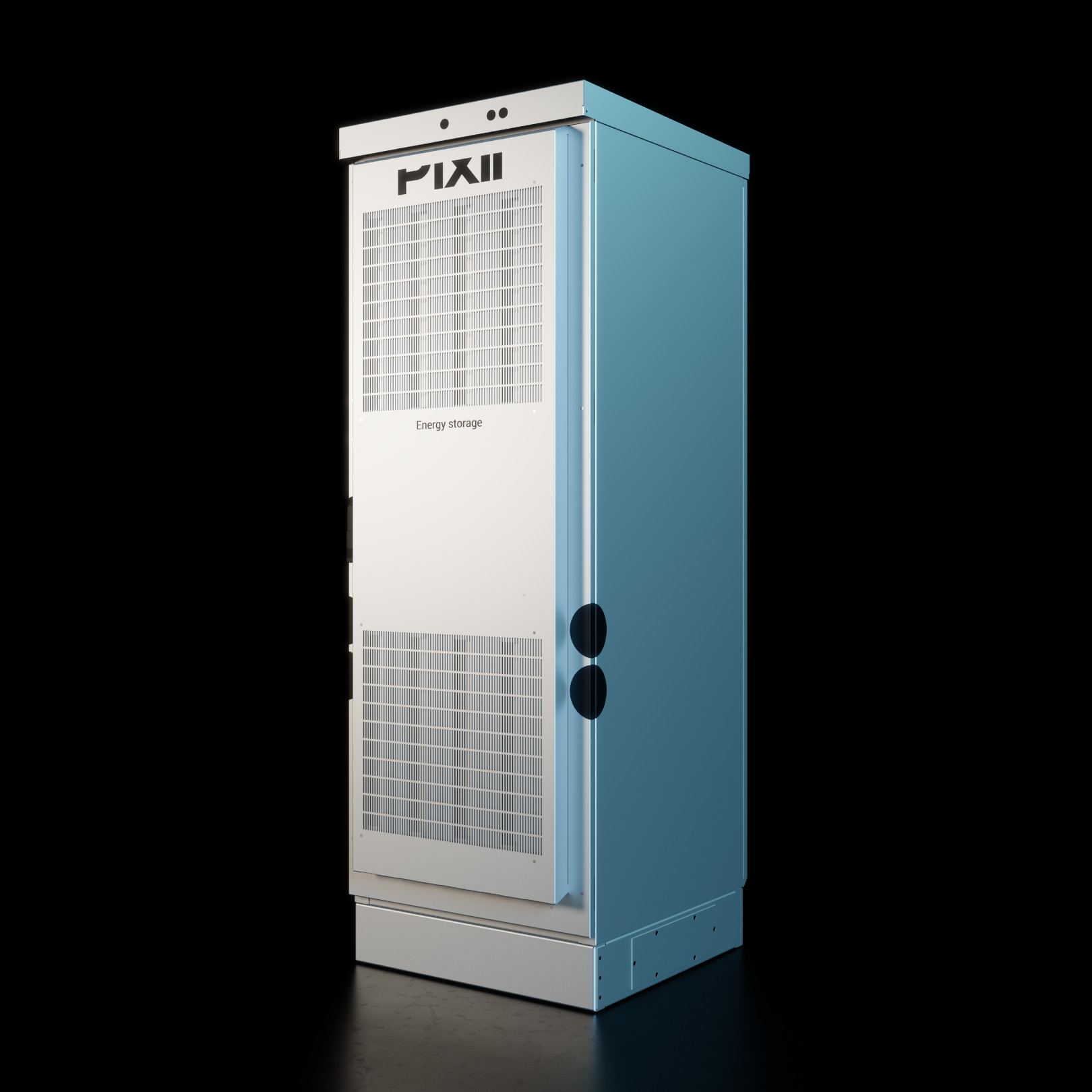

The Pixii PowerShaper2 is a modular battery energy storage system that scales to your needs. It comes with smart functionality like time shift and peak shaving to reduce your energy cost, and it´s fully integrated, enabling you to get the most out of your new or existing solar panels. Now you can take part in the flexibility market and open new revenue streams.

It comes with The Pixii Gateway for remote monitoring and control, with cloud services giving you the complete overview of all your sites, including performance stats, historical data and alarms. And trough MQTT and Modbus protocols you will get the flexibility you need.

  • Modular and scalable
  • For applications 10kW to 1 MW
  • Compact energy storage
  • Fast response (charge to discharge)
  • Integrated & battery inverter solution
  • Wide range of functions
  • Galvanically isolated AC to DC
  • 48V battery voltage for ease of service

Peak shaving

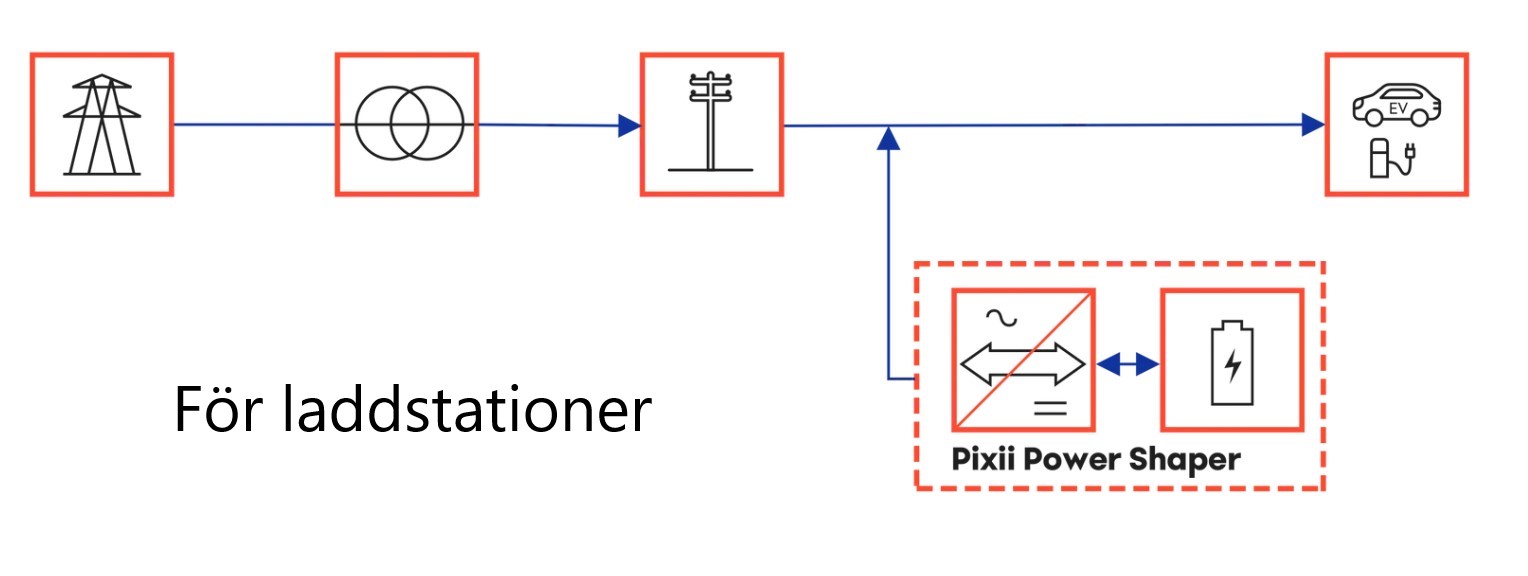

Reduce your demand charges and save cost by shifting your power dependency from grid to battery, shaving the peaks of your power consumption. It also allows you to boost available power without having to upgrade your grid connection.
Grid and voltage support

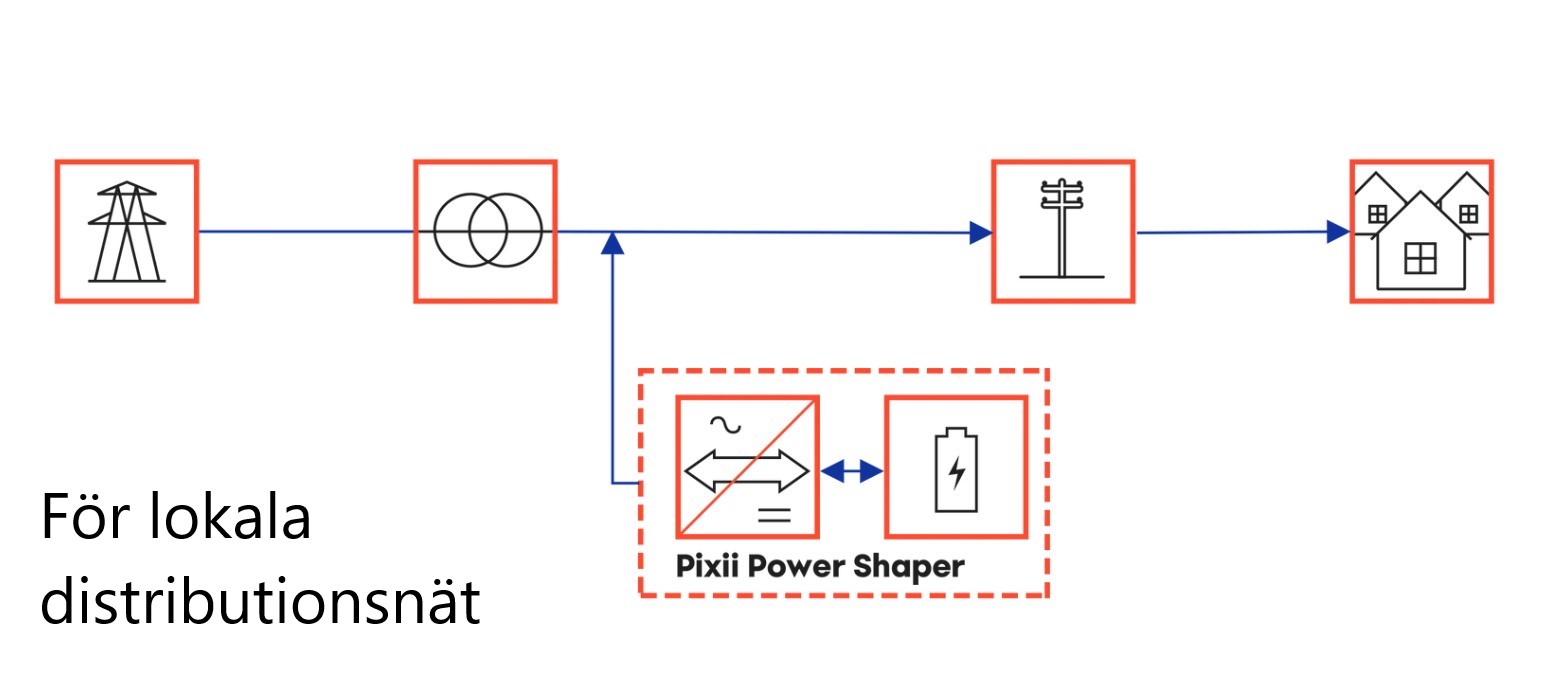

Improve quality of electricity supply for DSO’s (DNSP’s) on grids not prepared for the green transition. Through phase balancing, active and reactive power compensation, the Pixii BESS is a cost effective solution to quickly increase power capacity and ensure a supply of electricity within national regulations.
Arbitrage
Support loads from battery when electricity rates are high, and charge battery when electricity rates are low.
PV self consumption

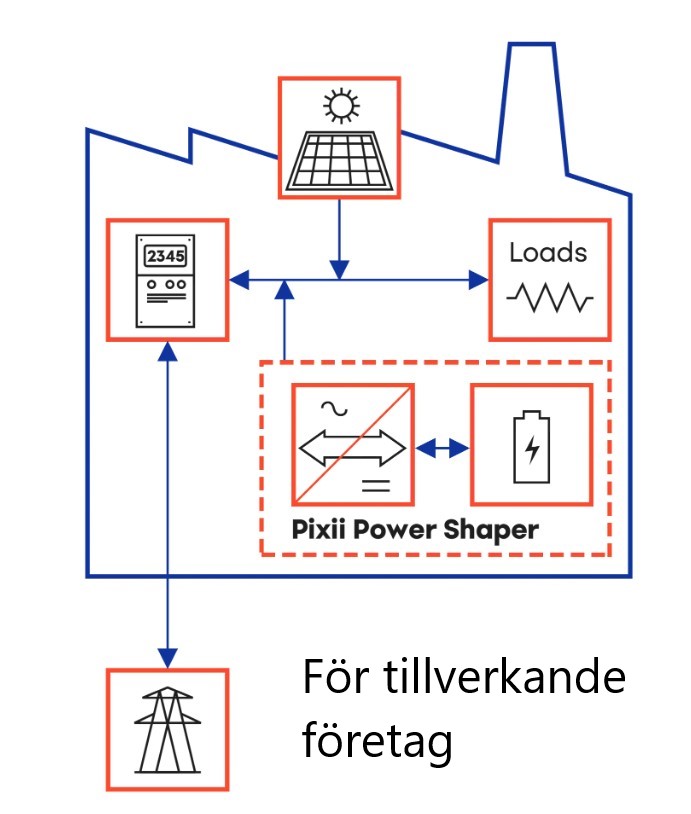

Get the most out of your solar investment and reduce your dependency on the grid through smart power management, enabling you to re-direct excess power generation to batteries for later use during peak hours.
Phase balancing
Balance your three-phase load to provide utilization of your upstream distribution network, by feeding power from phases with low load – to phases with high load and thereby stabilizing the phase voltages.
Flexibility markets
Unlock the value of your battery energy storage system and monetize your system’s flexibility by making your power and energy available for flexibility markets. (FCR-D, FCAS, FFR etc.)
FCAS (Frequency Control Ancillary Services)
Participate in the frequency control market with Pixii´s smart energy storage solution, allowing you to provide first-response frequency support and help stabilize the grid by taking part in VPP.

Applicable standards
Safety
IEC/EN 62109-1, IEC/EN 62109-2, IEC/EN 62040-1, IEC/EN 62477, (Batteries) IEC 62619, IEC 62368, UN38.3,
RPEQ Mechanically certified for lifting, Load Restraint Guide 2018 for Transportation
Grid AS/NZS 4777-2, VDE-AR-N 4105, 50549-1,TF 3.3.3 B1, EREC G99 (others pending)
EMC IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
Environment ETSI EN 300 019:2-1 (Class 1.2), ETSI EN 300 019:2-2 (Class 2.3), ETSI EN 300 019:2-3 (Class 3.2)
Flexible grid tied energy storage system up to 50kW
